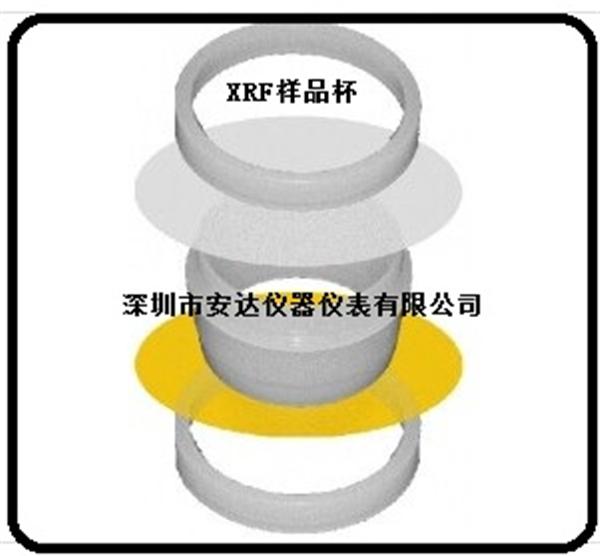

XRF样品杯，100个/包，两端开口，加固定环。
通用于所有X光谱仪：岛津shimadzu、牛津仪器Oxford、斯派克Spectro、布鲁克Bruker、精工SII、、理学Rigaku、堀场Horiba、帕纳科Panalytical、尼通Niton、伊诺斯Innox-X、天瑞Skyray、美国PE公司、美国瓦里安公司、利曼、斯派克、JY、精谱、安捷伦等。
|
目录编号
|
描述
|
外部直径
|
最大外部直径
|
高度
|
孔径
|
容量，cc
|
X射线设备兼容性
|
样本杯盖目录编号
|
样本杯属性
|
个/包
|
|
|
|
|
|
|
|
（立方厘米）
|
|
|
|
|
1530
|
双开口端
|
1.22”
|
无
|
0.91”
|
0.94”
|
9
|
Asoma, Bruker, Jordan, Fis, Jordan, Kevex, Metorex,
Panalytical, Philips, Rigaku, Siemens, Spectrace, Spectro, Thermo
|
1630
|
两个开口端，用于顶部样本加载与附着微孔膜或咬合盖；“珠对凹孔”咬合环几何结构。SE目录号包含集成的薄膜修
|
|
|
|
(31.0mm)
|
|
(23.1mm)
|
(23.9mm)
|
|
|
|
|
Chemplex2100系列样品杯
SpectroCup? Internal Overflow Reservoir Sample Cups
VENTED “SNAP-ON” CAP and TRIMLESS? THIN-FILM SLEEVE ATTACHMENT
Snap-On Cap establishes a series of physical baffles that provide resistance to powdered sample withdrawal under evacuated conditions. Vent hole equalizes pressure differentials within the sample cup and sample chamber under helium flushes and vacuum operating conditions.
Cell integrates an Internal Overflow Reservoir for collecting thermally sensitive liquid samples within the sample cup reducing the likelihood of inadvertent spillage into the sample chamber; serves as a filling level guide for uniformity of sample volume.
Integrated flange on outer cell neck diameter physically defines the distance of TrimLess?Sleeve travel over the Cell during the thin-film sample support window attachment procedure; ensures reproducible sample cup assemblies and statistically accurate x-ray data.
Extra wide TrimLess@Sleeve envelopes extraneous thin-film sample support window material toeliminate trimming excess and dealing with annoying static prone clippings.
.规格：见下表
包装：100个/包
|
CAT.NO.
|
OUTSIDE DIAMETER
|
Max. Dia.
|
HEIGHT
|
APERTURE
|
Knob Cap
|
CAPACIT,cc
|
CAPS/PKG
|
|
AD2131
|
1.22” (30.9mm)
|
1.36” (34.5mm)
|
1.15” (29.2mm)
|
1.04” (26.4mm)
|
No
|
9
|
100
|
|
AD2132
|
1.24” (31.5mm)
|
1.36” (34.5mm)
|
1.15” (29.2mm)
|
1.04” (26.4mm)
|
No
|
9
|
100
|
|
AD2135
|
1.35” (34.3mm)
|
1.46” (37.1mm)
|
1.17” (29.7mm)
|
1.10” (27.9mm)
|
No
|
11
|
100
|
|
AD2140
|
1.58” (40.1mm)
|
1.70” (43.2 mm)
|
1.17” (29.7mm)
|
1.38” (35.0mm)
|
No
|
19
|
100
|
|
AD2143
|
1.58” (40.1mm)
|
1.62” (41.1mm)
|
1.17” (29.7mm)
|
1.38” (35.0mm)
|
No
|
19
|
100
|
|
AD2144
|
1.58” (40.1mm)
|
1.62” (41.1mm)
|
1.33” (33.8mm)
|
1.38” (35.0mm)
|
Yes
|
19
|
100
|
|
AD2145
|
1.76” (44.7mm)
|
1.81” (46.0mm)
|
1.16” (29.5mm)
|
1.57” (39.9mm)
|
No
|
22
|
100
|
|
AD2146
|
1.76” (44.7mm)
|
1.81” (46.0mm)
|
1.32” (33.5mm)
|
1.57” (39.9mm)
|
Yes
|
22
|
100
|
|
AD2147
|
1.76” (44.7mm)
|
1.85” (46.9mm)
|
1.16” (29.5mm)
|
1.57” (39.9mm)
|
No
|
22
|
100
|
|
AD2148
|
1.76” (44.7mm)
|
1.85” (46.9mm)
|
1.32” (33.5mm)
|
1.57” (39.9mm)
|
Yes
|
22
|
100
|
|
AD2195
|
1.71” (43.4mm)
|
1.77” (45.0mm)
|
1.56” (39.6mm)
|
1.50” (38.1mm)
|
Yes
|
22
|
100
|
美国Chemplex工业公司自1971年成立以来，一直坚持专注于X射线光谱分析的样品制备领域，拥有多系列独有的特色产品线以及产权，以质量和全面的X射线的样品制备产品线享誉全球。美国Chemplex公司一直以产品创新、质量保证、技术支持、服务周到、准时交货为原则，几乎所有的产品有库存。
