商品名称:  PCB线宽检测仪

商品编号:  AD-106

商品规格:  AD-106

净重含量:  AD-106

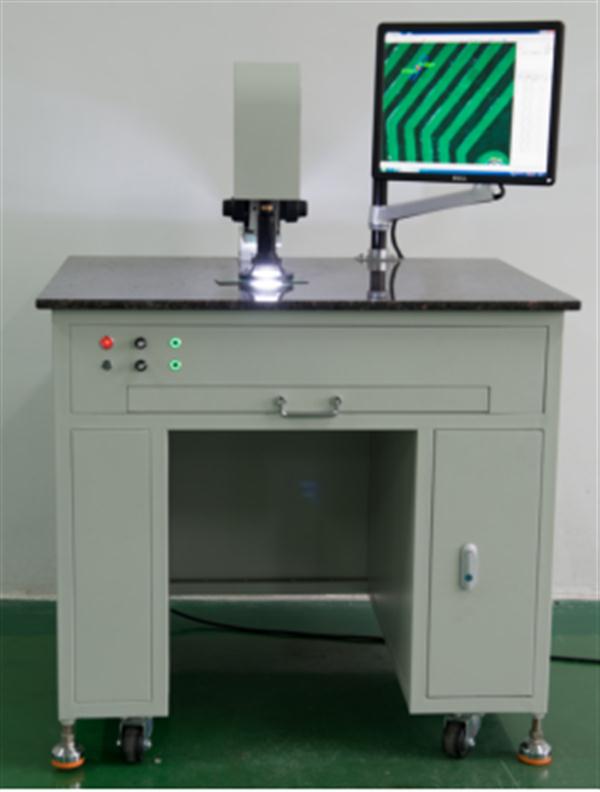

PCB线宽检测仪AD106

用途

主要用于检测印制电路板内、外层半成品经显影蚀刻后(上绿油前)线路的上幅及下幅宽度,线间的距离,圆孔、盲孔、弧的直径和孔到边线的距离等。This machine is mainly used to measure the widths of inner and outer range of semi PCBs after etching (before solder masking). In addition, the distance between two lines, distance between holes and edge and diameters of different holes and arcs can also be measured.



扩展用途:IC芯片线宽距测量,薄膜宽度测量,LCD线路板测量。

Expanding usage: it can also be used to measure widths of IC wafer, thickness of films, LCD boards, etc.



特征 Features

1、红光LED定位,可快速找到测量区域。 It adopts LED red light to locate, which can confirm the measurement region quickly.

2、高精度机械调节装置,对焦距进行粗调和微调。It has a high-precision mechanical adjustment device. You can do coarse or rigour adjustment to the focus distance.

3、采用进口高感光度彩色CCD,成像画质清晰。 This equipment adopts high-sensitivity color CCD, which makes images clearer.

4、配备环形光源,且连续可调,满足上线宽、下线宽、圆孔、盲孔多种测量模式。

It is equipped with annular light source, which is continuously adjustable. So it stands different modes include upper line, lower line, round holes, blind holes and some other measurement modes.

5、拥有管理员/操作员模式,方便管理。The administrator/operator mode offers a good way to management.

6、软件自动寻边,测量更加快捷准确。The software search edge automatically, which makes measurements faster and more accurate.

7、软件操作简便,鼠标三键操作。The software is convenient to operate with three keys of a mouse.

8、方便快速汇出测量图片和测量资料。 It can export the measurement data and images quickly and easily



技术参数 Technical Parameter

项目            Item

规格

型号            Model

AD-106

分辨率          Resolution

0.70~5.20μm/pixel

电子放大倍率    Electronic magnification

70x~400x

光学放大倍率    Optical magnification

0.7×~4.0×连续可调

光源            Light source

LED环形光(亮度连续可调)

LED定位光源(红光)

CCD

高感光度CCD

可测最大板宽    Max measurable board width

780mm

视野范围        Sight arrange

0.53mm×0.4mm~3.4mm×2.5mm

仪器外形尺寸(不含计算机)

Appearance dimensionwithout computer

960×760×1400mmL×W×H

重量(不含计算机)Weightexclude computer

145kg

工作电源        Power supply

220V~±10%/50Hz

操作温度        Operation temperature

0℃~40℃
