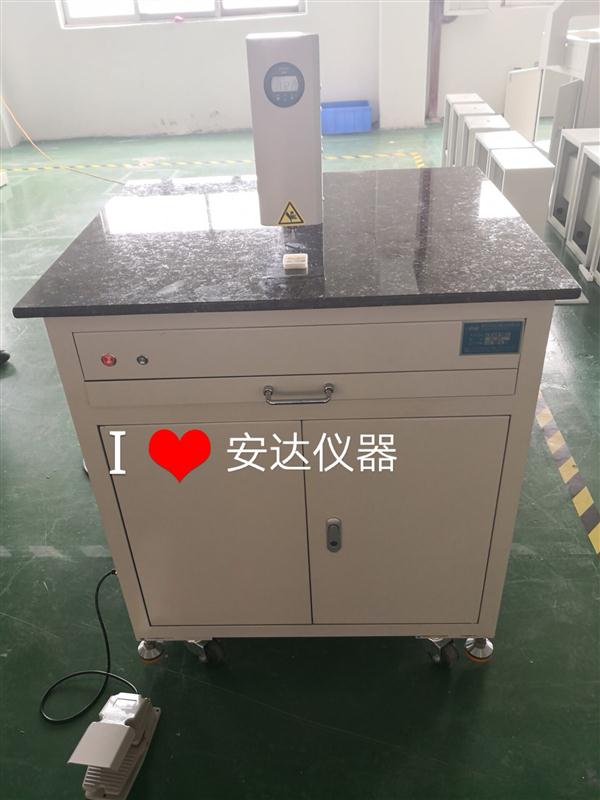

长臂板厚测试仪AD-288
Long arm Measuring machine
介绍：Introduction：
长臂板厚测试仪主要用于覆铜层压板和多层板压层后的厚度测量,以及其它板材厚度的测量。配置有计算机对测量数据进行自动记录储存,使用专业 SPC 过程控制软件,高精度日本原装进口数显表、可对测量数据进行全方位 的过程控制数据分析。Long arm thickness measuring machine is mainly used to measure the thickness of copper clad laminate and multilayer plate after lamination, as well as other plate thickness measurement. Equipped with a computer for automatic recording and storage of measurement data, professional SPC process control software, highprecision imported digital display meter from Japan, can be used for all-round process control data analysis of measurement data.
特点：
1 喉深大,能对大型板材中间部位的厚度进行测量。
The throat is deep and large enough to measure the thickness of
the middle part of large plates.
2 采用日本原装进口数显千分表，测量精度高。
Adopt the original imported digital display meter from Japan, with
high measurement accuracy.
3 能进行 mm/inch 公制、英制单位切换，数据液晶屏幕显示。
Able to switch between mm/inch metric and inch units,
and display the data on the LCD screen
4 配有夜间照明灯，适合多点场地及多种颜色的PCB板。
Equipped with night lighting, suitable for multi-site and multi-color PCB board.
5 桌面为花岗岩,美观高档、表面耐磨。
The table top is granite, beautiful and high-grade, wear-resistant surface.
6 性能稳定可靠、操作简单、配套数据分析软件。
stable and reliable performance, simple operation, supporting data analysis software.
7 特别的显示器炫挂设计，节省空间多角度可观看。
Special display display design, saving space and viewing from multiple angles
参数：
|
型号 Model
|
AD-288
|
|
Appearance(Width * Depth * Height :mm) 外形(宽*深*高)
|
910(L)*880(W)*1250(H)mm
|
|
Throat depth(mm)(喉深)
|
530 mm (特殊要求可定制）
|
|
Thickness testing range(mm)(板厚测量范围)
|
0~8mm (特殊要求可定制）
|
|
显示精度 Display precision
|
公制0.000mm英制 0.00000可切换
|
|
测量方式 Measuring way
|
上顶针加下压板
|
|
Desktop Size(mm)(桌面尺寸)
|
800×700mm
|
|
Testing Accuracy(mm)(测量精度)
|
±0.003mm
|
|
Rated voltage/rated power(额定电压/额定功率)
|
AC220V 50Hz/ 500W
|
|
工作台面
|
天然大理石
|
|
照明
|
配夜间LED照明灯
|
|
Weight(Kg)(重量)
|
150kg
|
|
Air supply 气源(Mpa)
|
0.25-0.35Mpa
|
|
Computer(电脑)
|
DELL （选配）
|
|
Data analysis software(数据分析软件)
|
SPC （选配）
|
|
其它尺寸可订制
|
深圳市安达仪器仪表有限公司
地址：深圳市福田区彩田北路祥泰宁的士码头大厦四楼809
联系人：何小姐
手机号：13420947400（微信同步）
电话：0755-82952800
传真：0755-83272880
邮箱:andasz@126.com
QQ:664521572
https://andayqsz.1688.com/
www.szandayq.com
