俄罗斯ITM-525孔壁铜测厚仪PCB线路板专用, 适用于单、双、多层线路板
ITM-525 set may include the following items: 配置可包括下列选项
- ITM-525 basic unit 孔铜测厚仪主机
- EP-20 probe EP-20探头 0.45-0.6mm
- EP-25 cartridge EP-25探头0.6-0.8mm

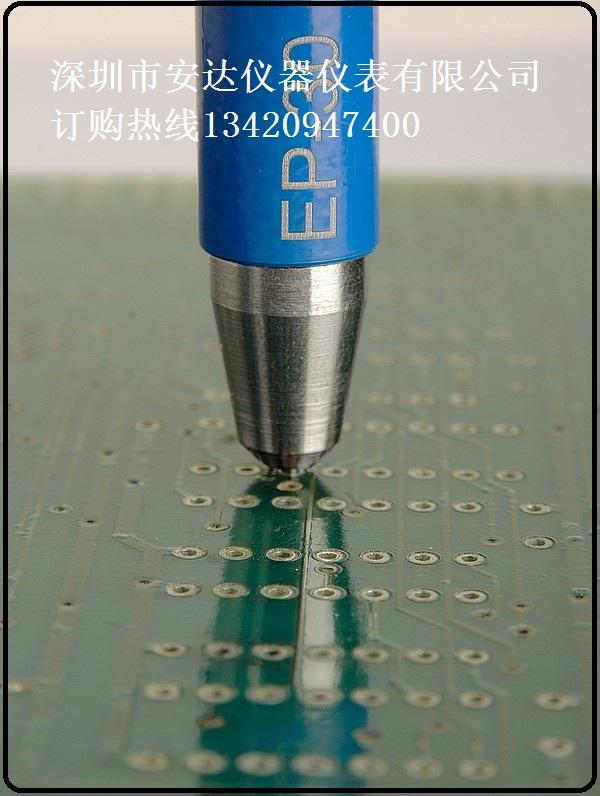

- EP-30 cartridge EP-30探头0.8-2.0mm
- EP-25S shortened probe EP-25S探头和连接线组合
- EP-30S shortened probe EP-30S探头和连接线组合
- Cartridge holder 探头连接线
- Reference standard RS-52-1 for the EP-30/EP-30S 标准片
- Reference standard RS-52-2 for the EP-25/EP-25S 标准片
- Calibration unit for EP-25/EP-30/EP-25S/EP-30S 校正器
- Reference standard/calibration unit RS-52-3 for the EP-20 标准片
- Hand-held probe guide 支架
- Copper surface probe (CSP) probe铜箔探头
- CSP calibration foils 标准片
- AC adapter 充电器
- USB cable USB连接线
- Operating Manual 使用说明书
- Plastic storage case 塑料箱子
ITM-525 specification 规格
|
PCB thickness range 线路板厚度
|
0.5 - 6 mm
|
|
Hole diameter range孔直径范围
|
0.45 - 2 mm
|
|
Measuring range in the hole 孔壁厚度测量范围
|
5 - 60 µm
|
|
Measuring range on copper laminate可测铜箔厚度范围
|
15 - 80 µm
|
|
Minimum continuous operation最小连续操作
|
10 hours
|
|
Weight 重量
|
280 g
|
|
Size 尺寸
|
155 x 80 x 30 mm
|
|
Stored readings 可储存数据
|
15,000
|
