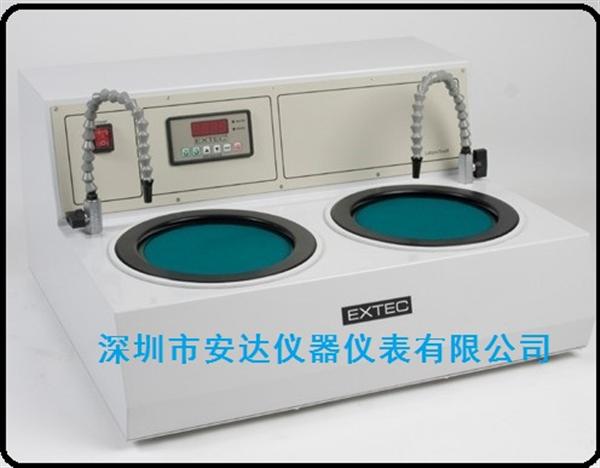

EXTEC ® Labpol Duo 8 - Twin Grinding/Polishing Machine Catalog# 10248
EXTEC LABPOL 8" (203mm) Duo Twin Grinding/Polishing Machine. Variable speed 50-500rpm
8 inch (203 mm) Aluminum Platens
A twin disc polishing machine with a low profile front deck includes two 8 inch (203mm) Extec aluminum platens and two platen guards. The machine operates at variable speeds between 50-500rpm with the set speed on a front display panel.
A water lubrication inlet and outlet are located on the rear panel. A control tap and flexible hose is located beside each platen so that water can be directed to any part of the platens during pregrinding.
The Labpol Duo 8 features a single EZ-DRO (digital read out) for simple user operation of the dual platens. Platens can be operated simultaneously at 0-500 rpm in both directions, clock wise (CW) and counter clock wise (CCW).
The unit has a 1HP (0.75 kW) motor and a single controller operating both platens at variable speed between 0-500 rpm.
- Motor:
- Variable Speed: 1.0 HP (.75kW) motor and controller.
- Platen Supports:
- Quick Release system for changing platens.
- Diameter of Platens:
- Lubrication:
- Water inlet and outlet in rear panel. Flexible tap with flexible hose to direct water to any pat of platen to direct water to any part of platen.
- Electronics:
- Demand speed between 50-500rpm. Set speed on display.
- Electrical:
- Dimensions:
- Width: 25 1/2" (650 mm)
- Depth: 24" (610mm) (add 1" (30mm) for inlet/outlet on rear panel.
- Height: 11" (280mm)
- Weight:
