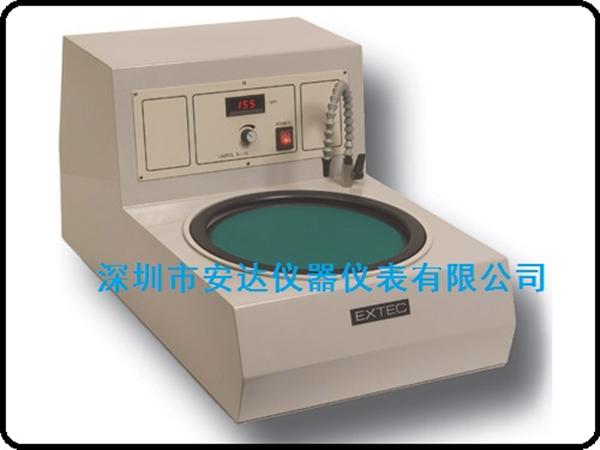

EXTEC ® Labpol 8-12 - Convertible Grinding/Polishing Machine Catalog# 10200

Convertiable grinding/polishing machine, fits 8 inch. (203mm), 230mm, 250mm or 12 inch (305mm) diameter grinding or polishing platen. Up to 500rpm.

8 inch / 230mm / 250mm / 12 inch Interchangeable Aluminum Platens

A versatile compact, convertible design grinding/polishing machine can be configured, as required, with an 8 inch. (203mm), 230mm, 250mm or 12 inch (305mm) diameter grinding or polishing platen. To change the configuration, simply remove the insert and lift the platen from the retaining pegs located on the platen base and replace with the new platen size and insert.

The machine Labpol 8-12 features an EZ-DRO (digital read out) for simple user operation and the unit operates 0-500 rpm in both directions, Clock Wise (CW) and CounterClockwise (CCW).

New! The platen base of the Labpol 8-12 has a 1HP (0.75kW) motor and controller operating at variable speed between 0-500 rpm.

Motor:
- Variable Speed: 1HP (0.75kW) motor and controller.
Platen Supports:
- Quick Release system for changing platens.
Diameter of Platens:
- 8" (203mm), 230mm, 250mm, 12"(305mm)
Lubrication:
- Water inlet and outlet in rear panel. Flexible tap with flexible hose to direct water to any pat of platen to direct water to any part of platen.
Electronics:
- Demand Speed CW and CCW 0-500rpm. Set speed on EZ-DRO (digital read out).
Dimensions:
- Width: 18" (455mm)
- Depth: 29" (735mm) (add 1" (30mm) for inlet/outlet on rear panel.
- Height: 16" (385mm)
Weight: 90 lbs. (40Kg)
