QUANTOFIX® Relax
A revolution in test strip analysis
德国MN测试纸分析仪91346

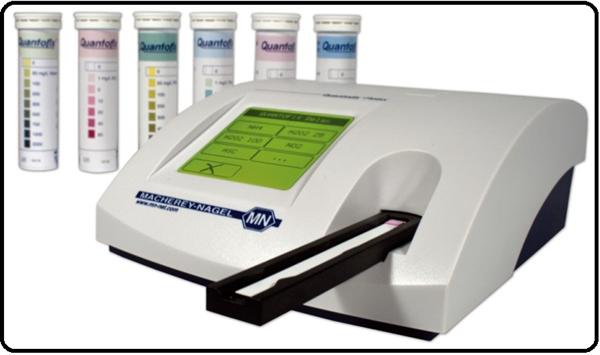

- Highest precision - Objective results - Easy result administration The QUANTOFIX® Relax is a revolutionary step in test strip analysis. With this new system, MACHEREY-NAGEL offers an entirely objective way to read QUANTOFIX® test strips, making the system particularly suitable if results are critical to your decision making. The system simplifies testing procedures and the decision processes by eliminating the subjectivity of visual readings and by providing higher accuracy. Especially if you test large numbers of strips, the QUANTOFIX® Relax helps and supports you with easy data administration and quick testing procedures. Additionally, the QUANTOFIX® Relax allows you to get actual quantitative results – no gradation and estimation of in-between values is necessary. The QUANTOFIX® Relax can change the way you work and test. The system enables you to focus on your core processes and is the perfect tool for your testing procedures.

Optimized usability

	Auto start Select the test, dip the strip and place it on the instrument. Without pressing any further button, the instrument starts the measurement automatically. So, operating is clean and easy.

	Graphic display The graphic display shows all relevant information at a glance. The result is given with a test specific confidential interval. Thus, you can easily decide which further steps are needed for your process.

	Touch screen The touch screen makes using the instrument a real pleasure. All functions are easily accessed with a dip on the screen. You can also enter sample IDs with the on-screen keypad or an external keyboard. This makes documentation of results safe and easy.

	Interface options The instrument features a USB as well as an RS232 interface. It can easily be connected to existing laboratory information systems and also to PCs.

	Printer The result is printed using a fast and silent internal printer. Thus, you can easily staple the results to production files for later check or QC procedures.

	Easily change tests With just two dips on the screen you can quickly change between your favorite tests. Select five different tests as your favorites out of a large variety of tests programmed into the instrument. All information is already programmed so you can immediately start the measurement when needed.

	Memory for 200 measurements Up to 200 measurements can be stored. Using internal functions, positive readings are easily filtered out, enabling further diagnosis whenever necessary.

Test strips for the QUANTOFIX® Relax
Test*	Measuring range	REF
QUANTOFIX® Ammonium**	10-350 mg/L NH4+	91315
QUANTOFIX® Asccorbic acid	50-1000 mg/L vitamine C	91314
QUANTOFIX® Glucose	50-2000 mg/L glucose	91348
QUANTOFIX® Nitrate/Nitrite	10-500 mg/L NO3- / 1-80 mg/L NO2-	91313
QUANTOFIX® Nitrite	2-80 mg/L NO2-	91311
QUANTOFIX® Peracetic acid 50	5-50 mg/L peracetic acid	91340
QUANTOFIX® Peracetic acid 500	50-500 mg/L peracetic acid	91341
QUANTOFIX® Peracetic acid 2000	500-2000 mg/L peracetic acid	91342
QUANTOFIX® Peroxide 25	0.5-25.0 mg/L H2O2	91319
QUANTOFIX® Peroxide 100	1-100 mg/L H2O2	91319
QUANTOFIX® Sulfite	10-1000 mg/L SO32-	91306
pH-Fix 6,0-10,0	pH 6.0-10.0	92122
*Together with the QANTOFIX® Relax, the strips may not be used for medical applications
**This test includes all necessary reagents and contains harmful substances, which must be labeled as hazardous

Technical data
REF	91346
Instrument memory	200 test results including sample ID
User guidance	Touch screen, alphanumeric input, password protection
Interface	Computer: USB and RS232 interface for connection to PC, PS/2 interface for connection of keyboard and / or barcode scanner
Dimensions (DxWxH)	20 x 16 x 7,5 cm
Weight	710 g (1.90 lb), (w/o batteries and power supply)
Power requirements	Power pack 110-240 V AC Battery powered operation (optional) with 6 AA batteries
Operation	Temperature range: 5-40 °C Humidity range: 20-80%
Calibration	automatic, self calibrating
Capacity	50 strips per hour
