| Compact photometer PF-12便携式多功能水质分析仪PF-12/德国MN原装进口 |
| |
| Maximum flexibility
- More than 100 pre-programmed methods
- Automatic wavelength adjustment
- Backlit graphic display with intuitive user guidance
- Data storage according to GLP
- USB interface for data transfer, update and power supply
Experience flexibility

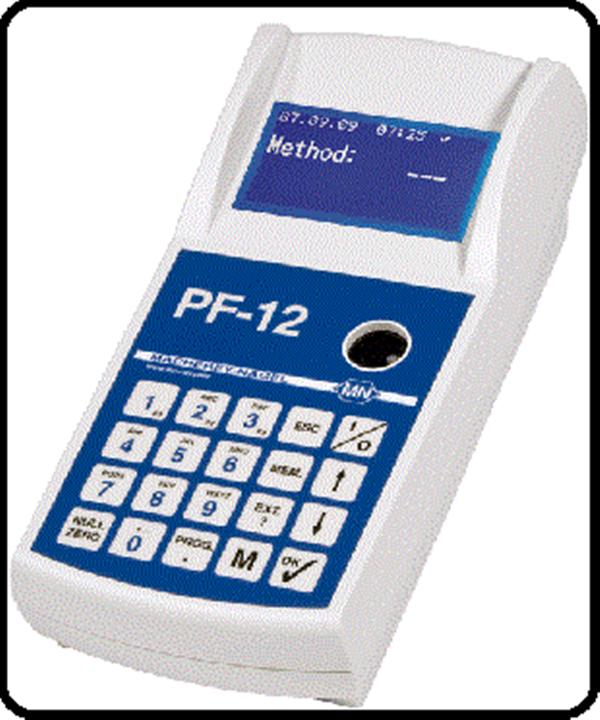

The compact photometer PF-12 is the logical result of a further development based on our very successful photometer PF-11. Adapted to our customers‘ requirements the PF-12 impresses with modern design and precise analytic. Pre-programmed tests, automatic wavelength adjustment and the intuitive user guidance allow fast and easy operation. Results are stored according to GLP and transferred safely to your PC with the included PC-software. The PF-12 offers an unrivaled flexibility with variable power supply via mains supply, standard and rechargeable batteries, PC and 12 V car adapter; photometric analysis of VISOCOLOR® ECO tests and NANOCOLOR® tube tests including all relevant parameters for water and waste water analysis and individual combination of tests in the new reagent cases.
|
 |
| |
| Save time
Backlit graphic display with self-explanatory user guidance
- All tests and menu items can be activated fast and easily
- Operation without complex and time-consuming training
Measurement without cuvette slot cover
The progressively designed optics is insensitive to external light and makes measuring straightforward
Be prepared for the future
Fast photometer update - free of charge
- At any time, stay up-to-date with our easy online software update
- For the current software update please visit
www.mn-net.com
 |
|
Assure results
Documentation of results according to GLP
- Individual entries of sample number, sample Location and dilution
Clear memory management
- GLP-conform storage of results with all supplementary information such as date, time, sample number, sample location and dilution
- Fast and easy access to stored results and data sets
Convenient data export
- NANOCOLOR® Software DVD included in delivery
- Easy transfer of results to PC
- Data export directly to MS Excel
- Recording of calibration curves to programme user-defined methods
Internal quality control according to ISO 9001
- Fulfill supervisor and authority requirements
- Fast and easy self-monitoring of photometric accuracy with NANOCONTROL NANOCHECK (REF 925 701)
|
| |
| Be mobile
Works under any condition
- Variable power supply for mobile use:
|
 |
 |
 |
| Standard and rechargeable batteries for more than 2000 off the line measurements |
USB adaptor (REF 919 220) for mains supply and cigarette lighter in the car |
USB adaptor for mains supply in the lab |
|
- Power saving auto-off function after 5, 10, 15 or 20 min
- Waterproof housing (IP 67)
|
| |
| Enjoy versatility
Complete water and waste water analysis
- Ammonium, Chlorine, total-N, total-P, Nitrate, Nitrite, all COD tests and many more
- More than 100 pre-programmed tests
- VISOCOLOR® ECO tests
- NANOCOLOR® tube tests
- Programmable for 10 user-defined methods
- Photometric basic functions: absorbance, transmission, factor and standard
|
 |
| |
| Endless opportunities
Individual mini-labs
- Portable reagent cases with photometer PF-12
- Photometric analysis of VISOCOLOR® ECO tests can be combined with:
|
 |
 |
 |
 |
| Qualitative test papers, VISOCOLOR® reagent bottles |
QUANTOFIX® test strips, pH-Fix test strips, pH indicator papers and |
Accessories |
| |
| Technical data |
|
| Type: |
Filter photometer with microprocessor control, self-test and auto-calibration; Wavelength range 340 - 860 nm |
| Optics: |
Automatic filter wheel with 7 interference filters
Insensitive to external light - no light shield required |
| Wavelengths: |
345 / 436 / 470 / 540 / 585 / 620 / 690 nm
plus 1 compartment for additional filters |
| Wavelength accuracy: |
± 2 nm, bandwidth at half transmission 10 - 12 nm |
| Light sources: |
Tungsten lamp |
| Detector: |
Silicon photodiode |
| Blanc value: |
Automatic |
| Measuring modes: |
Over 100 pre-programmed tests
(NANOCOLOR® tube tests and VISOCOLOR®ECO tests)
Adsorbance, transmission, factor, standard
10 freely programmable methods |
| Photometric range: |
± 3 E |
| Photometric accuracy: |
± 1 % |
| Stability: |
< 0.002 E/h |
| Cuvette holder: |
Round tubes 16 mm OD |
| Data memory: |
200 results, GLP conform |
| Display: |
Backlit graphic display, 64 x 128 pixels
All important data at a glance: Result in respective unit, date, time, sample number, sample location and dilution |
| Operation: |
Display user guidance, plastic foil keyboard
Test selection via test number or parameter lists
12 languages (de, en, fr, es, it, nl, hu, pl, pt, cz, id, si) |
| Quality Control: |
With NANOCONTROL NANOCHECK |
| Interface: |
USB 2.0 |
| Update: |
Via Internet/PC; free of charge |
| Operating range: |
0 - 50 °C , up to 90 % relative humidity |
| Power supply: |
Via USB power supply, standard or rechargeable batteries |
| Housing |
Waterproof, IP 67 |
| Dimensions: |
215 / 100 / 65 mm |
| Weight: |
0.7 kg |
| Warranty: |
1 years |
This appliance comply with the following EC directives:
– 2006/95/EG – Low-Voltage Directive
– 2004/108/EG – EMC Directive |
| |
| Ordering information |
|
| Compact photometer PF-12 incl. software DVD, manual, 4 batteries, 4 empty test tubes, funnel, beaker, syringe, USB cable, calibration cuvette and certificate in rugged case |
REF 919 200 |
| USB power supply |
REF 919 220 |
| Charger |
REF 919 221 |
PF-12便携式多功能水质测试仪
最大适用性
- 超过100个预置测试方法
- 自动调整波长
- 背投显示，直观的用户操作指南
- GLP数据存储
- USB接口进行数据传输，软件更新和电力供应
经验的灵活性
PF-12光度计是基于我们非常成功的PF-11光度计的基础上研发的新品。PF-12光度计适用于那些需要现代化设计和精确分析结果的客户。预置的测试程序、自动波长调整和一目了然的用户操作指南可以实现快速、简单的操作。测试结果依照GLP进行存储，并通过PC软件安全地传输至个人电脑。
PF-12提供了一个灵活的供电方式，可通过电源线供电、用标准的或可充电电池供电、个人电脑或者是12V的汽车适配器进行供电。
PF-12可以配合VISICOLOR试剂和NANOCOLOR试管试剂对水及废水进行系统的光度法分析，
节省时间
背投显示，明了的用户操作指南
- 所有测试和菜单选项，都可以快速方便的激活
- 简单的操作，不需要专门的培训
- 测量时无需在试管槽上加遮光罩
- 最新设计的光学装置不受外部光线影响，可以直接测量
提供免费系统更新及升级服务
可靠的结果
GLP结果如下：
- 分别输入样品编号，取样地点和稀释比例
- 清晰的储存管理
- GLP符合包括附加信息的结果储存，比如：日期，时间，样品编号，取样地点和稀释比例
- 快速、简单地访问存储的结果和数据设置
- 方便的数据输出
|
技术参数
|
|
|
类型
|
微处理控制的单光束滤光光度计、自动测试、自动校准，波长范围340 - 860 nm
|
|
光学原理：
|
由7个滤镜片组成的滤镜轮，外部光源不会对测试产生干扰——无需遮光
|
|
波长
|
345 / 436 / 470 / 540 / 585 / 620 / 690 nm
附加一个可以放置其他滤光器凹槽
|
|
波长精度
|
± 2 nm；带宽:10-12 nm
|
|
光源
|
钨灯
|
|
检测器
|
硅光电二极管
|
|
空白值
|
自动
|
|
测量模式
|
超过100种预置测试程序（NANOCOLOR试管试剂和VISOCOLOR ECO试剂）
10种可以自由编程的方法
|
|
光度范围
|
± 3 E
|
|
光度精确度
|
± 1 %
|
|
长期稳定性
|
< 0.002 E/h
|
|
样品槽
|
16mm外径圆形试管
|
|
数据存储
|
200个测量数据，GLP兼容
|
|
显示屏
|
背投显示，64 x 128像素
所有重要的数据一目了然：单位，日期，时间，样品编号，取样地点和稀释比例
|
|
操作
|
显示用户操作指南，覆铝箔的按键，通过测试方法编号或参数表进行方法选择
12种语言可供选择
|
|
质量控制
|
使用NANOCONTROLNANOCHECK试剂组
|
|
接口
|
USB 2.0
|
|
升级：
|
通过Internet/PC，免费升级
|
|
操作条件：
|
0 - 50 °C，相对湿度不超过90%
|
|
电源：
|
过USB供电，标准或可充电电池
|
|
外壳
|
防水等级，IP 67
|
|
尺寸:
|
215 / 100 / 65 mm
|
|
重量
|
0.7 kg
|
|
保修
|
2 years
|
|
此仪器遵循以下EC规范:– 2006/95/EG –低压规范，– 2004/108/EG – EMC规范
|
测试参数 测试范围 保质期（月） 测试次数 产品编号
氨氮 3 0.1 - 2.5 mg/l NH4+ 18 50 931208
氨氮 15 0.5 – 8.0 mg/l NH4+ 18 50 931210
氯 1-60 mg/l Cl- 12 50 931218
氯 2 (自由+总) 0.10 - 2.0 mg/l Cl2 18 150 931215
自由氯 2 0.10 - 2.0 mg/l Cl2 18 150 931216
氯 6（余氯+总氯） 0.05-6.00mg/l Cl2 24 200 931217
自由氯 6 0.05-6.00mg/l Cl2 24 400 931219
铬（VI） 0.04 - 1.00mg/l CrO42- 18 140 931220
铜 0.1-5.0 mg/lCu2+ 24 100 931237
氰化物 0.01-0.20 mg/lCN- 12 100 931222
氰尿酸 10-100mg/lCya 18 100 931223
氟化物 0.1-2.0mg/lF- 18 150 931227
联氨 0.05-0.40mg/lN2H4 12 130 931230
铁 0.04-2.00mg/l Fe 24 100 931226
锰 0.1-5.0 mg/l Mn2+ 18 70 931238
镍 0.04 - 5.0 mg/l Ni + 18 150 931240
硝酸盐 1-80 mg/lNO3- 18 110 931241
亚硝酸盐 0.02-0.50 mg/lNO2- 18 120 931244
氧 1-8mg/l O2 12 50 931288
pH6.0-8.2 pH6.0-8.2 18 150 931270
磷酸盐（DEV） 0.2-5.0 mg/l PO4-P0.6-15.0 mg/l PO43-36 80 931284
钾 2-25 mg/lK+ 36 60 931232
二氧化硅 0.2-3.0mg/l SiO2 36 60 931233
硫酸盐 20-200mg/l SO42- 36 100 931292
硫化物 0.05-0.80mg/l S2- 36 90 931294
锌 0.1-3.0mg/l Zn+ 12 120 931298
参数 测试范围 保质期 测试次数 产品编号
铝 07 0.02 - 0.70 mg/l Al3+ 12 19 985098
氨氮 03 0.04 - 2.30 mg/l NH4-N0.05 - 3.00 mg/l NH4+12 20 985003
氨氮 10 0.2 - 8.0 mg/l NH4-N0.2 - 10 mg/l NH4+12 20 985004
氨氮 501 - 40 mg/l NH4-N1 - 50 mg/l NH4+12 20 985005
氨氮 1004 - 80 mg/l NH4-N5 – 100 mg/l NH4+12 20 985008
氨氮 20030 - 160 mg/l NH4-N40 - 200 mg/l NH4+12 20 985006
AOX(吸附型有机结合卤素)0.1 - 3.0 mg/l AOX0.01 - 0.3 mg/l AOX12 20 985007
BOD5 0.5 – 12.0 mg/l O2 24 25-50 985822
BOD5-TT 0.5 – 7.5 mg/l O2 24 22 985825
镉 2 0.05 - 2.00 mg/l Cd2+ 12 10-19 985014
碳酸盐硬度 151.0 - 15.0 °d0.4 - 5.4 mmol/l H+12 20 985015
氯化物 200 5 - 200 mg/l Cl- 12 20 985019
氯化物 50 0.5 - 50 mg/l Cl- 12 20 985021
氯 2/臭氧 20.05 – 2.50 mg/l Cl20.05 – 2.00 mg/l O312 20 985017
二氧化氯 5 0.15 - 5.0 mg/l ClO2 12 20 985018
铬酸盐 50.05 – 2.00 mg/l Cr(VI)0.1 – 4.0 mg/l CrO42–24 20 985024
COD 40 2 - 40 mg/l O2 12 20 985027
COD 60 5 - 60 mg/l O2 12 20 985022
COD 160 15 - 160 mg/l O2 12 20 985026
COD 160 Hg-free 15 - 160 mg/l O2 12 20 963026
COD 300 50 - 300 mg/l O2 12 20 985033
COD 1500 100 - 1500 mg/l O2 12 20 985029
COD 10000 1.00 - 10.00 g/l O2 12 20 985023
COD 15000 1.0 - 15.0 g/l O2 12 20 985028
COD 60000 5.0 - 60.0 g/l O2 12 20 985012
有机化合物（例行测试） 0.5-10mg/1 4Bic 12 10-19 985052
铜 7 0.10 – 7.00 mg/l Cu2+ 12 20 985054
氰化物 08 0.02 - 0.80 mg/l CN- 12 20 985031
DEHA 1 二乙基羟胺 0.05 - 1.00 mg/l DEHA 12 20 985035
乙醇 0.10 - 1.00 g/l EtOH 24＜0℃ 23 985838
.................................
