Manual Calibration Dissolved Oxygen Meter - 深圳市安达仪器仪表有限公司

Automatic Temperature Compensation
Affordable and efficient
DO probe and carrying case included

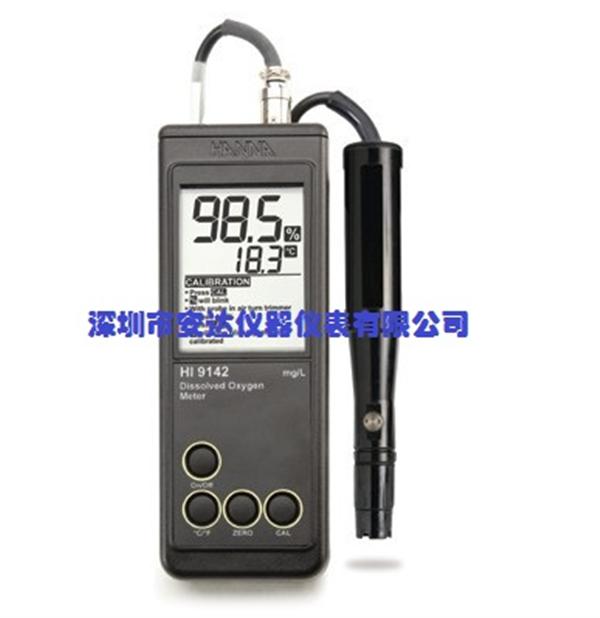

便携式DO溶氧仪/溶解氧测试仪/Manual Calibration Dissolved Oxygen Meter

The ever increasing demand for instant on-site analysis results has created a need for innovative and rugged portable, waterproof meters.

Field work can subject instrumentation to the inclemency of weather. Cold, rain, snow, dust and humidity can cause condensation to breech the housing. Once the housing has been compromised, the meter is susceptible to diminishing performance and life. The rugged, waterproof housing of the HI 9142 solves many of the problems of field use.

Calibration is performed with HI 7040 zero oxygen solution, while 100% calibration is done in air.

The polarographic probe (HI 76407/4) is accurate to 0.3 ppm and is supplied with a
4 m (13‘) cable that allows measurements to be taken even in hard to reach places.

Order Information:
HI 9142 is supplied with HI 76407/4 probe with 4 m (13’) cable, 2 spare membranes, HI 7041S electrolyte solution (30 mL), calibration screwdriver, batteries, instructions and rugged carrying case.
HI 9142/10 is supplied with everything above but substitutes a 10 m (32.8’) probe cable for the 4 m.
HI 9142/20 is supplied with everything above but substitutes a 20 m (65.6’) probe cable for the 4 m.

Range	O₂	0.0 to 19.9 mg/L (ppm)
	Temperature	-5.0 to 50.0ºC (32.0 to 122.0ºF)
Resolution	O₂	0.1 mg/L (ppm)
	Temperature	0.1°C (1ºF)
Accuracy (@20°C)	O₂	±1.5% F.S.
	Temperature	±0.2°C (±1ºF) (excluding probe error)
Calibration		manual, at one or two points (zero and slope)
Temperature Compensation		automatic, 0 to 50°C (32 to 122°F)
Probe		HI 76407/4 polarographic DO probe with internal temperature sensor, DIN connector and 4 m (13’) cable
Battery Type / Life		1.5V AAA (3) / approximately 1,000 hours of continuous use
Environment		0 to 50°C (32 to 122°F); RH max 95%
Dimensions		185 x 72 x 36 mm (7.3 x 2.8 x 1.4”)
Weight		300 g (10.6 oz.)
