日本PEAK必佳百倍镜

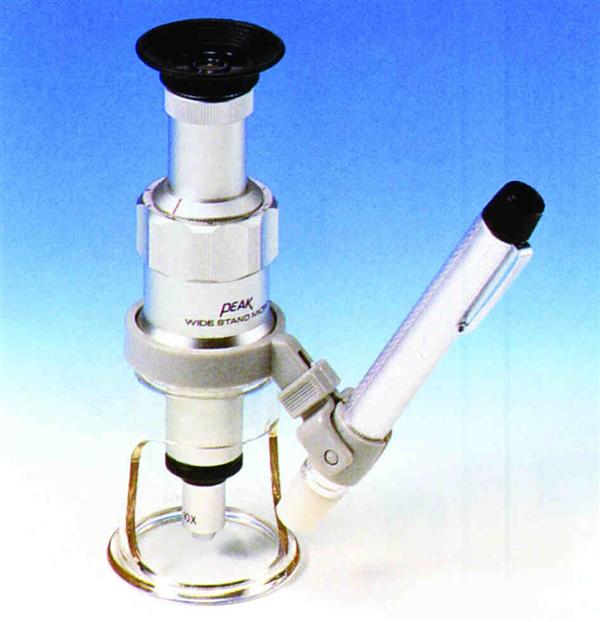

Microscope with lamp and scale

Model: 2034-20 2034-40 2034-60 2034-100 2034-150 2034-200 2034-300

Magnification :20X 40X 60X 100X 150X 200X 300X

Field of view: Φ7.2mm Φ3.6mm Φ2.4mm Φ1.45mm Φ0.96mm Φ0.72mm Φ0.48mm

Minimum scale: 0.10mm 0.05mm 0.02mm 0.01mm 0.005mm 0.002mm 0.001mm

Measuring range :6.0mm 3.0mm 2.0mm 1.2mm 0.9mm 0.6mm 0.2mm

Size: Φ63×172mm

Model: 2008-25 2008-50 2008-75 2008-100

Magnification: 25X 50X 75X 100X

Field of view: Φ3.3mm Φ1.70mm Φ1.09mm Φ0.84mm

Minimum scale :0.05mm 0.02mm 0.01mm 0.005mm

Measuring range :3.0mm 1.6mm 1.0mm 0.8mm

Model :2009-20 2009-40 2009-60 2009-100

Magnification :20X 40X 60X 100X

Field of view: Φ7.2mm Φ4.3mm Φ2.2mm Φ1.8mm

Minimum scale :0.05mm 0.02mm 0.02mm 0.01mm

Measuring range :6.0mm 3.4mm 1.6mm 1.2mm

Working distance :52.01mm 28.01mm 6.0mm
