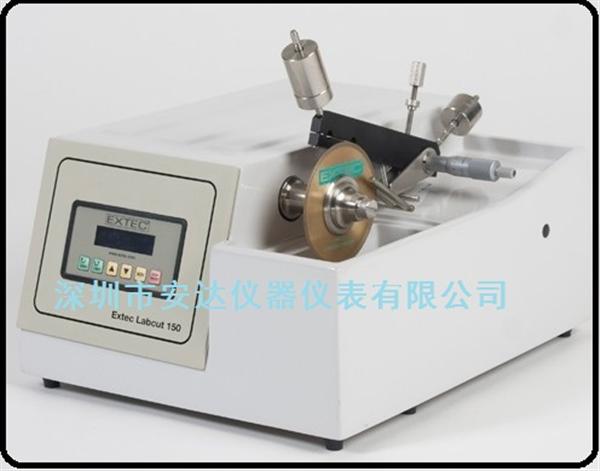

EXTEC ® Labcut 150 – Variable Speed Precision Diamond Saw
Precision Cutting Without
Deformation
The EXTEC ® Labcut 150 Variable
Speed Precision Diamond Saw is
an attractive, modern styled
laboratory instrument designed for
precision cutting of a wide variety of
materials. Samples can be cut with minimal damage and deformation. The universal design
and variable speed aid the precision cutting of fragile and soft materials. Variable wheel
rotation speeds range from 0 to 1000 rpm. A variety of sample holders add to the 150’s
versatility. This includes the Rapidcut Precision Attachment which reduces cutting time and
results in a high quality surface finish.
The Labcut 150 is ruggedly constructed from a cast-aluminum frame with stainless steel
components providing stability and corrosion resistance in a molded water resistant
cabinet. The EZ-DRO™ Easy Keypad operates the powerful belt driven AC 1/4 HP motor with
inverter. The sample arm is pivoted and can be counterbalanced to provide low loading
conditions on the specimen. It features 25mm micrometer movement that allows positioning of
the sample with respect to the wheel.
The Recirculating Coolant System consists of a coolant reservoir with an adjustable power
supply, liquid recirculation pump, twin coolant tubes, stainless perforated tray, sample retrieval
tweezers and sump drain tool. The system provides adequate coolant flow to the twin coolant
tubes located on either side of the cutting wheel. The Recirculating Coolant System accepts
EXTEC cutting fluids.
The Labcut 150 will accept 3 inch* (75mm), 4 inch (100mm), 5 inch (125mm) and 6 inch
(150mm) diameter diamond wafering blades and abrasive cut-off wheels. A transparent
polycarbonate splash/safety shield with an integrated safety switch is fitted to prevent
operation when the shield is open. An endpoint microswitch indicator can be set to terminate
the cutting process at a predetermined depth.
An optional sample rotation attachment (model 1000-100) is available featuring a modified
sample arm with a motor drive and variable speed controller which help to eliminate blips and
reduces cutting time.
*3 inch (75mm) requires set of optional flanges
A P P L I C A T I O N S
Materials: Slicing samples of metals, alloys, composites.
Ceramics: Slicing samples of ceramics.
Semiconductor: Cutting semiconductor crystals and sectioning embedded devices.
Pathology: Cutting bone and teeth material and preparing thin sections. Cutting
embedded tissue.
General Physics: Mounting and slicing single crystals along a particular axis.
Geology: Preparing mineralogical sections of rocks.
Paleontology: Preparing sections of fossils in rocks.
S P E C I F I C A T I O N S
Spindle: Stainless Steel ½ inch (12.7mm) diameter with standard flanges, belt
driven.
Motor: 1/4HP (0.18kW) 100-115 volt or 220-240 volt
Wheel Speed: EZ-DRO™ Easy Keypad Range 0 to 1000 rpm
Wheel Size: 3* inch (75mm), 4 inch (100mm), 5 inch (125mm), 6 inch (150mm)
*3 inch (75mm) requires set of optional flanges.
Speed Display: Speed displayed digitally on front panel EZ-DRO keypad. Range
0-1000rpm
Sample Holder: Counter balanced pivoting arm, variety of sample holders can be
attached
End Point: Microswitch for stopping the cutting process at a preset depth.
Micrometer: 0-25 mm (>1 inch) 0.01mm (< .0040 inch)
Recirculating
Coolant System:
Stainless steel perforated tray, power supply, adjustable coolant
pump, twin coolant tubes, sample retrieval tweezers, RCS drain tool
Safety Shield: Polycarbonate Splash/Safety Shield with magnetic integrated safety
switch
Dimensions: Width: 12” (300mm)
Height: 8”* (200mm)
Depth: 16” (400mm)
Main Body Height: 8” (208mm)
Weight: 40lbs (18kg)
